Thread Mill 3 Tooth UNC UNF for Steel Solid Carbide Coated CNC High Efficiency General Purpose Anti Sticking Adjustable External

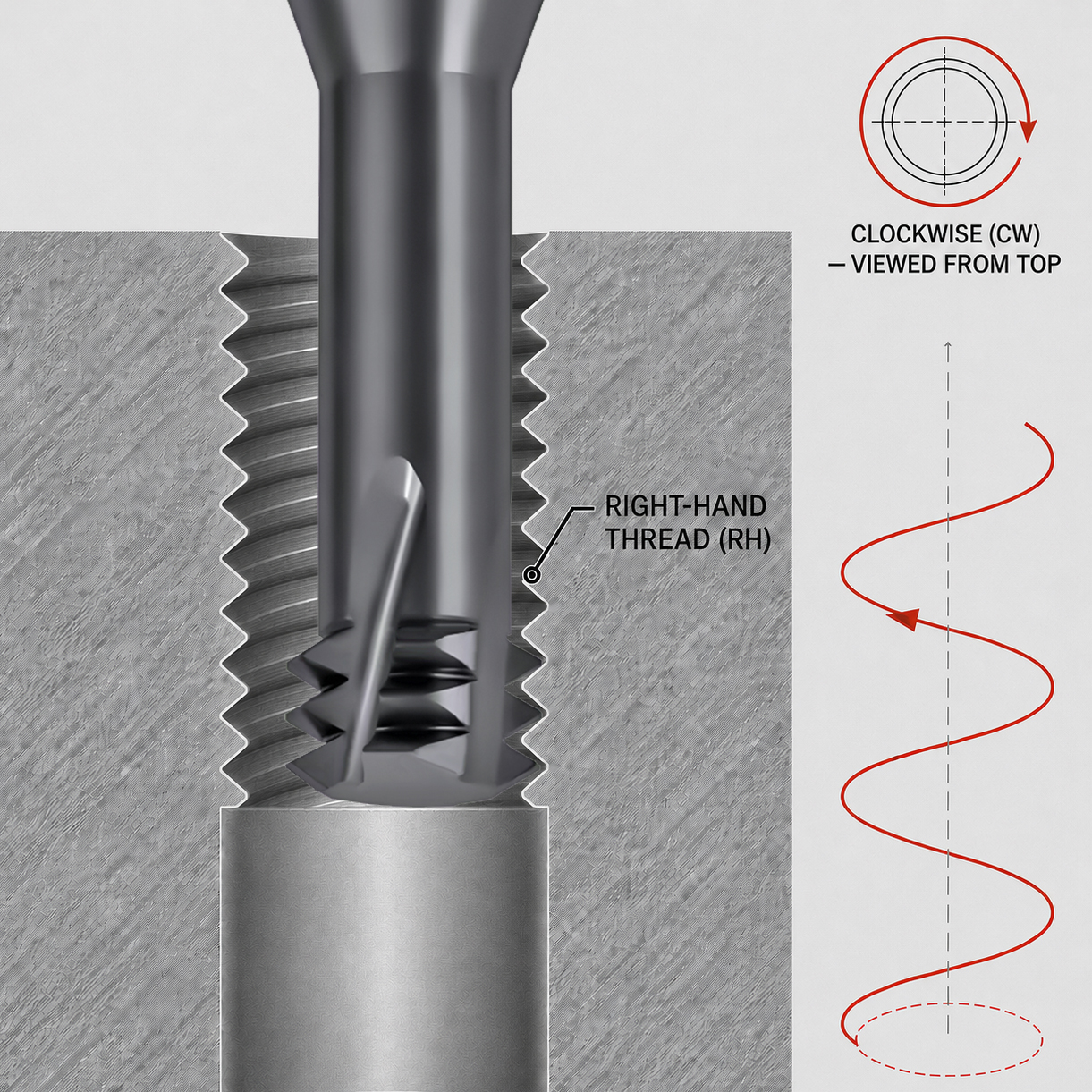

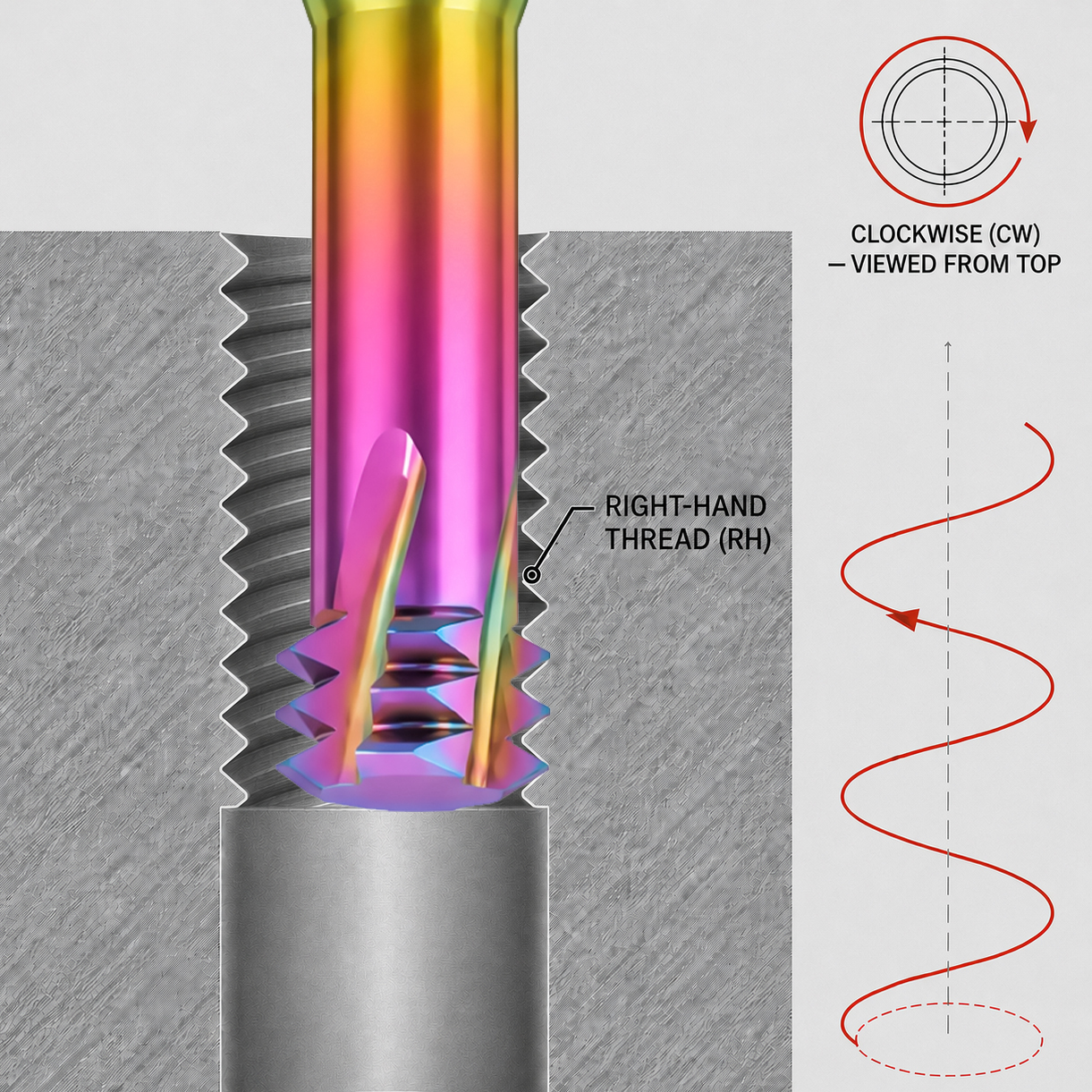

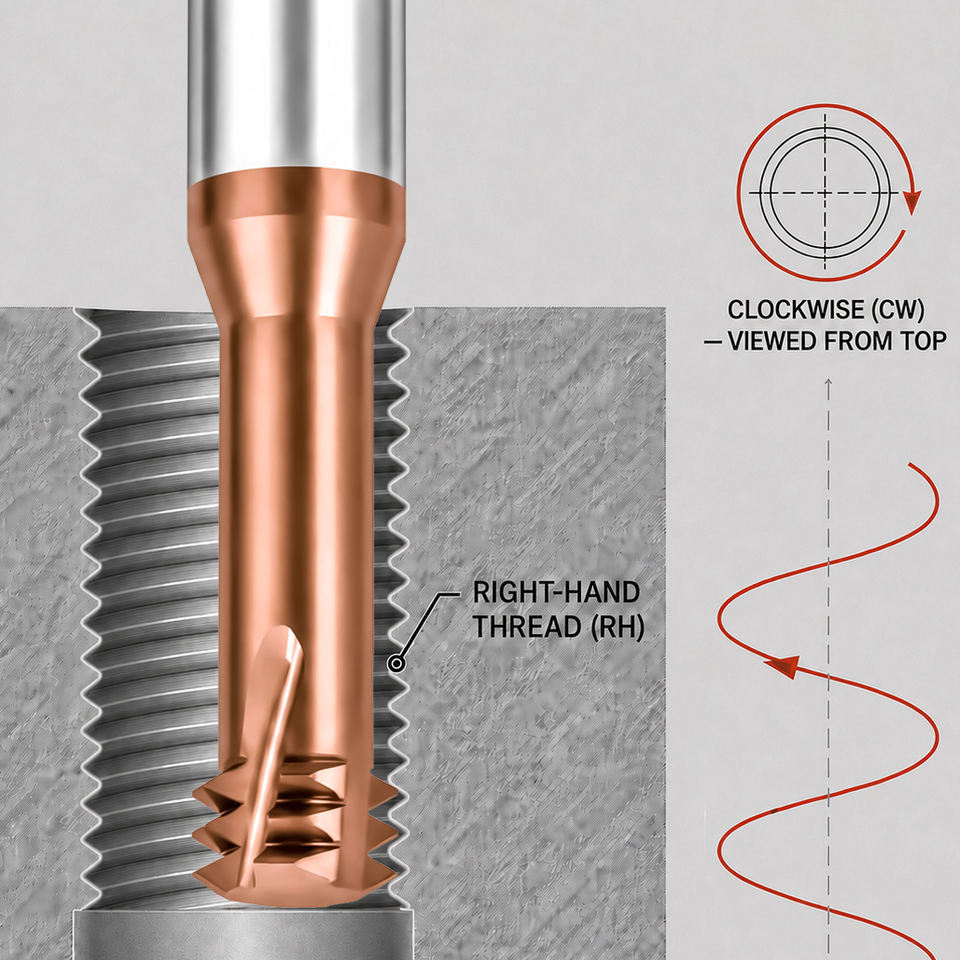

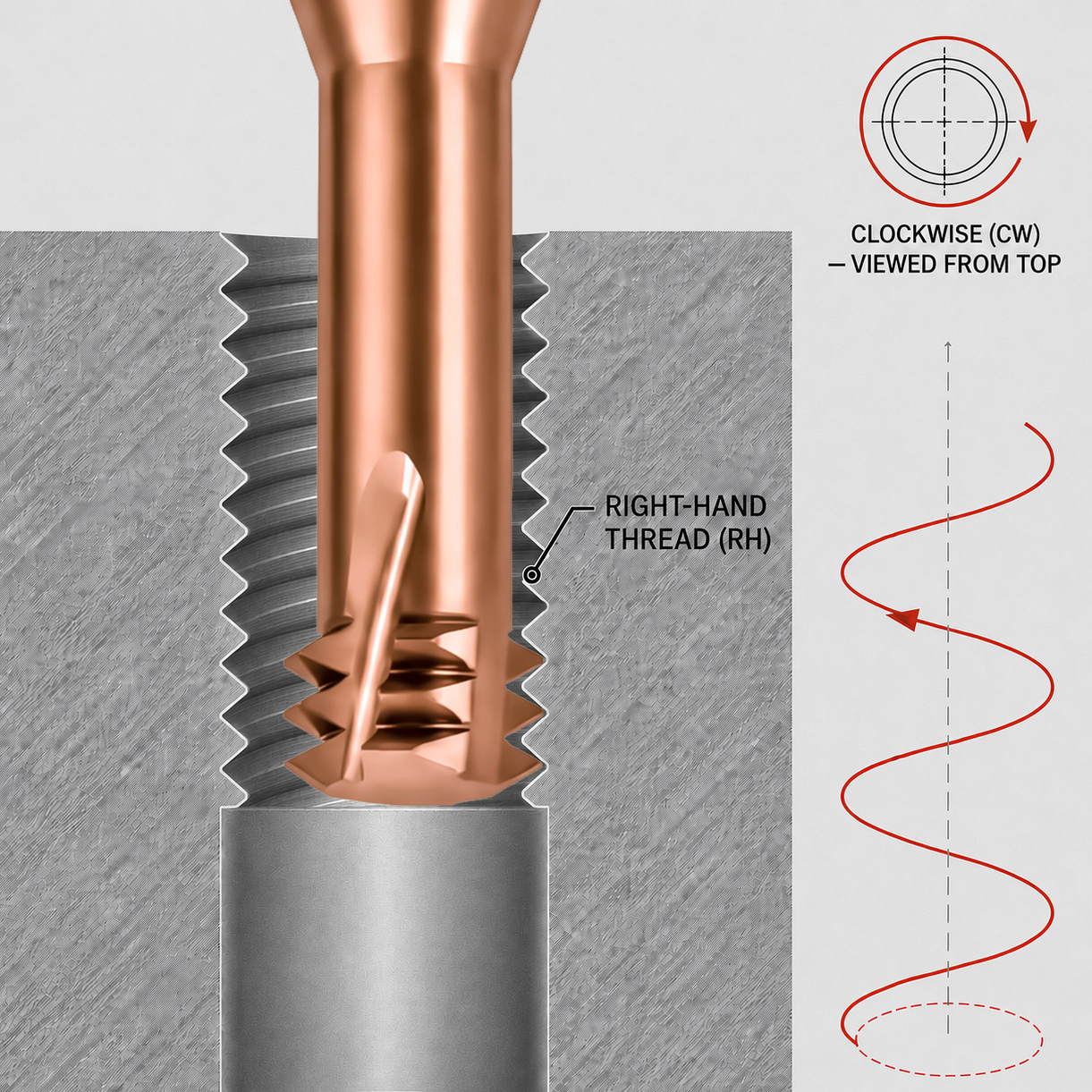

Broken taps in blind or deep holes mean scrapped workpieces and expensive rework. YOGOU full-form (FT) thread mills cut a complete thread in one continuous helical pass - no axial torque, so no tap breakage, and down-cutting chips reach the bottom of blind holes. One tool machines several thread diameters by program adjustment, and the same tool cuts both right-hand and left-hand threads. The full-form edge delivers the highest efficiency and a clean thread surface for volume production. Coverage: ISO metric (M/MF) and UNC/UNF, sizes M2-M24, 2D and 3D depths. Bronze version: bronze wear-resistant coating for ISO P steel and cast iron. In-stock tools ship within 48 hours.

YOGOU (Zhongshan) Precision Cutting Tools Co., Ltd., 20+ years in high-end precision tooling. Technology-driven innovation, quality-built trust. Micro Precision. Made To Measure. Factory: 7,000 sqm base, 100+ international CNC grinding machines, 95% automation. Design, grinding, coating and full-chain inspection in-house: micron-level tolerance, stable production of tools down to 1.0 mm. Quality: five inspection gates (incoming, in-process, pre-coating, post-coating, final), full traceability, rod to shipment. ISO 9001 certified; national high-tech enterprise; invention, utility-model and design patents. R&D & custom: university engineering partnerships; drawing-to-delivery non-standard tooling; OEM/ODM; application engineering and process optimization. Range: solid carbide rod tools, indexable inserts, modular and custom tools. Boring covers the full internal sequence (boring, profiling, grooving, threading) for bores from 1.0 mm, standard and SSS grades; thread mills, 7 standards, M1.0-M24. Applications: aerospace, mold & die, EV automotive, 3C electronics. 50+ export countries; 500+ distributors and OEMs. In-stock ships in 48 h; custom in 14 days; small batches welcome.

YOGOU (Zhongshan) Precision Cutting Tools Co., Ltd., 20+ years in high-end precision tooling. Positioning: Micro Precision. Made To Measure. Philosophy: technology-driven innovation, quality-built trust.

Every tool is engineered from real shop-floor conditions - micro bores no standard tool can reach, long overhangs that deflect and chatter, stainless steels that work-harden and weld to the edge, and special geometries with no standard tooling available. We deliver international-class performance at an accessible price.

Factory: 7,000 sqm base, 100+ international CNC grinding machines, 95% automation. Design, precision grinding, coating and full-chain inspection fully in-house - micron-level tolerance, stable volume production of tools down to 1.0 mm, no outsourcing variability.

Quality: five inspection gates - incoming, in-process, pre-coating, post-coating, final - with full traceability from rod to shipment. ISO 9001 certified; national high-tech enterprise; invention, utility-model and design patents.

R&D & custom: engineering partnerships with universities and research institutes; drawing-to-delivery non-standard tooling; OEM/ODM; application engineering and tool-selection support. We sell machining solutions, not just tools.

Range: solid carbide rod tools, indexable inserts, exchangeable modular tools and custom tools. Boring system covers the complete internal sequence - boring, profile turning, grooving, threading - for bores from 1.0 mm, in standard and SSS stainless grades; thread mills across 7 standards, M1.0-M24.

Applications: aerospace, mold & die, EV automotive, 3C electronics. Markets: 50+ countries across Europe, the Americas, Southeast Asia and the Middle East; 500+ distributors and OEM customers.

Delivery: in-stock tools ship within 48 hours; custom tools within 14 days; small batches welcome.

Can you make custom tools to my drawing?

Yes. Send us your component drawing or sample, and our engineers respond with a machining proposal - from design and trial cutting to delivery. Custom tools are typically delivered within 14 days.

What is your minimum order quantity (MOQ)?

Small batches are welcome. We support flexible order sizes from trial quantities to volume production, with in-stock tools shipped within 48 hours.

Are left-hand versions available?

Yes. Most series offer full left-hand variants (e.g. MFR/MFL, MZR/MZL, MGR/MGL, MAR/MAL, MVR/MVL, MXR/MXL, MDR/MDL) to suit any spindle direction.
